J30J-25TJS Connector 25 Pins 250V 500VAC -55～+125℃

J30J-25TJS Connector 25 Pins 250V 500VAC -55～+125℃
J30J-25TJS Connector 25 Pins 250V 500VAC -55～+125℃
J30J-25TJS Connector 25 Pins 250V 500VAC -55～+125℃ J30J-25TJS Connector 25 Pins 250V 500VAC -55～+125℃
Basisinformatie
Merknaam: Raymo
Certificering: CE/RoHs/REACH/ISO9001:2015
Modelnummer: J30J-25TJS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Prijs: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Betalingscondities: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000PCS Per Month
Contact nu
Rasterafstand: 2.54x2.54 Spanningsbeoordeling: 250V
Het weerstaan van Voltage: 500VAC Draadlengte: 50 cm, 500 mm.
Contact pin: 25 pinnen Temperatuurbereik: -55 ̊+125 °C
Lijktempo: ≤1.01x10^-3 pa.cm^3/s Type: Aansluiting
Markeren:

J30J series 25 pin connector

,

J30J connector 250V 500VAC

,

J30J connector -55 to +125℃

J30J Series J30J-25TJS Connector with 25 Pins
Product Specifications
Attribute Value
Grid Distance 2.54×2.54
Voltage Rating 250V
Withstanding Voltage 500VAC
Wire Length 50cm, 500mm
Contact Pin 25 Pins
Temperature Range -55～+125 ℃
Leak Rate ≤1.01X10^-3 Pa.cm^3/s
Type Connector
Product Overview
The J30J series connector is a premium product designed for electronic equipment, offering exceptional performance and reliability. Part of the renowned ITT Cannon MDM Series, it delivers outstanding quality for demanding applications.
Key Features
  • High-grade Copper Alloy center conductor with Gold Plating for superior conductivity
  • Microminiature design with 2.54×2.54 grid distance for space-constrained applications
  • Customizable cable length to meet specific requirements
  • Mating Cable: AFR-250, White Wire 0.1~0.15mm²

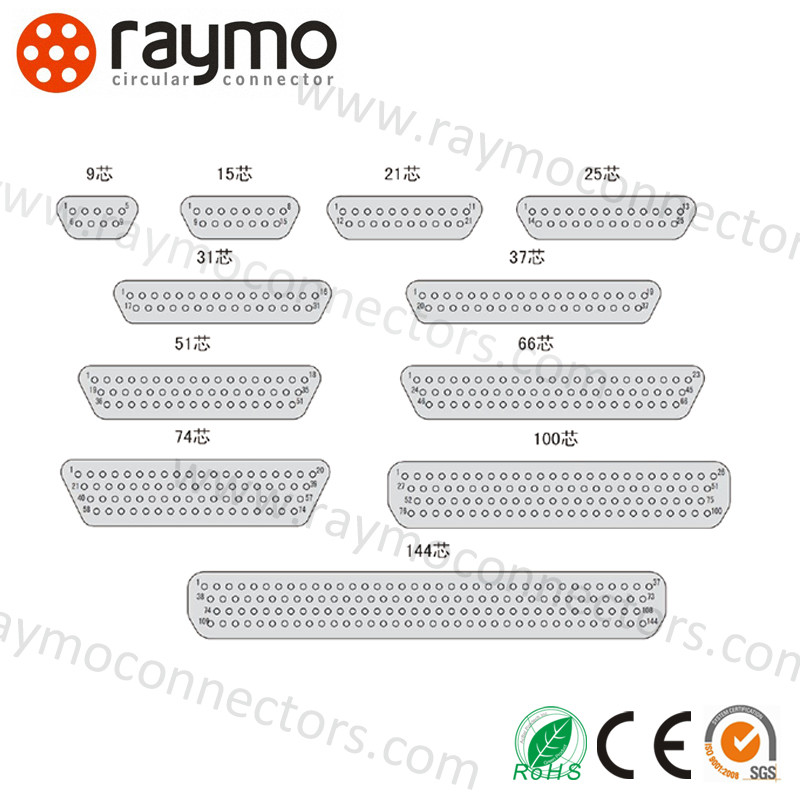

  • Available in multiple pin configurations (9, 15, 21, 25, 31, 37, 51, 66, 74, 100)
Technical Parameters
Parameter Value
Withstanding Voltage 500VAC
Voltage Rating 250V
Mating Cycle 500 Times
Temperature Range -55～+125 ℃
Leak Rate ≤1.01X10^-3 Pa.cm^3/s
Applications
The J30J series connector is certified with CE, RoHs, REACH, and ISO9001:2015 standards, making it suitable for various industrial and electronic applications. Its compact design is ideal for micro-miniature connectors in space-sensitive environments.
Support & Services
Our technical support team provides comprehensive assistance including installation guidance, troubleshooting, and maintenance recommendations to ensure optimal performance of your J30J series connectors.

label:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
