Thuis ProductenJ30J ConnectorJ30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy

J30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy

J30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy
J30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy
J30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy J30J Series Connector 9 Pins 500VAC Gold Plated Copper Alloy
Basisinformatie
Merknaam: Raymo
Certificering: CE/RoHs/REACH/ISO9001:2015
Modelnummer: MDM-9SS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Prijs: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Betalingscondities: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000PCS Per Month
Contact nu
Type: Aansluiting Het weerstaan van Voltage: 500VAC
Centrum dirigent: Koperen legering, verguld Temperatuurbereik: -55 ̊+125 °C
Het koppelen cyclus: 500 keer Beschikbare Spelden: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Lijktempo: ≤1.01x10^-3 pa.cm^3/s Draadlengte: 50 cm, 500 mm.
Markeren:

J30J series 9 pin connector

,

500VAC gold plated connector

,

copper alloy J30J connector

Mating Cable White Wire 0.1-0.15mm² J30J Series ITT Cannon MDM Series MDM-9SS Connector with 500mm Wire Length
Product Attributes
Attribute Value
Type Connector
Withstanding Voltage 500VAC
Center Conductor Copper Alloy, Gold Plating
Temperature Range -55～+125 ℃
Mating Cycle 500 Times

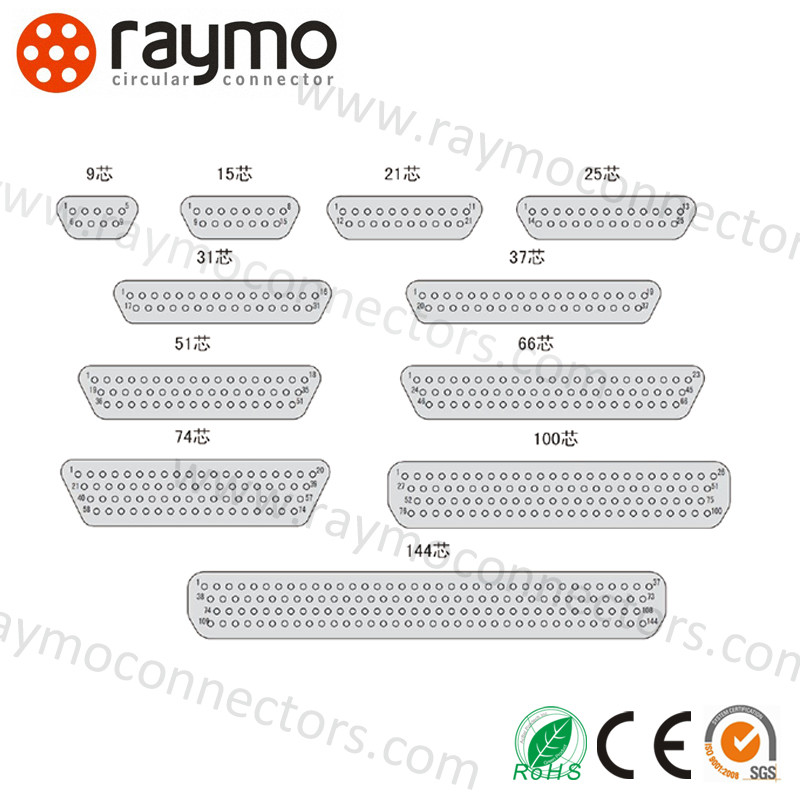

Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Leak Rate ≤1.01X10^-3 Pa.cm³/s
Wire Length 50cm, 500mm
Product Description
The J30J series connector is a high-quality microminiature connector designed for reliable signal transmission in compact spaces. Featuring a copper alloy center conductor with gold plating, this connector ensures excellent conductivity and corrosion resistance.
Key Features
  • Customizable cable length to meet specific requirements
  • Compatible with AFR-250 and White Wire 0.1~0.15mm² cables
  • 500 mating cycles for durability in frequent connection applications
  • Wide operating temperature range (-55°C to +125°C)
  • Leak Rate: ≤1.01X10^-3 Pa.cm³/s
  • Voltage Rating: 250V
Technical Specifications
Parameter Value
Cable Length As Required
Mating Cable AFR-250, White Wire 0.1~0.15mm²
Voltage Rating 250V
Temperature Range -55～+125 ℃
Type Connector
Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Contact Pin 9 Pins
Application Electronic Equipment
Applications
The J30J series connector is ideal for various industries including industrial machinery, automotive applications, and consumer electronics. Its compact design and wide temperature range make it suitable for both indoor and outdoor use in extreme conditions.
Support and Services
Comprehensive technical support including product installation guidance, maintenance assistance, and troubleshooting. Our team provides product training to enhance user experience and ensure optimal performance.

label:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
